How to ensure the alignment and precise placement of FPC flexible circuit boards, piezoelectric ceramics and conductive films during the assembly of ultrasonic high-frequency piezoelectric atomizers disc?

The assembly of ultrasonic high-frequency piezoelectric atomizers is a complex and delicate process, in which the alignment and precise placement of FPC (flexible printed circuit board) flexible circuit boards, piezoelectric ceramics and conductive films are key steps to ensure the performance of atomizers. The precise assembly of these components not only affects the working efficiency of the atomizer, but is also directly related to its service life and reliability. The following will discuss in detail how to ensure the alignment and precise placement of these key components during the assembly process.

1. Understanding of component characteristics and functions
Before starting assembly, it is crucial to have a deep understanding of the characteristics and functions of each component.
FPC flexible circuit board: FPC flexible circuit board has the characteristics of light weight, thin thickness and bendability, and can provide complex circuit connections in a limited space. In the atomizer, FPC is responsible for transmitting electrical signals to piezoelectric ceramics and is a bridge for electrical signal transmission.

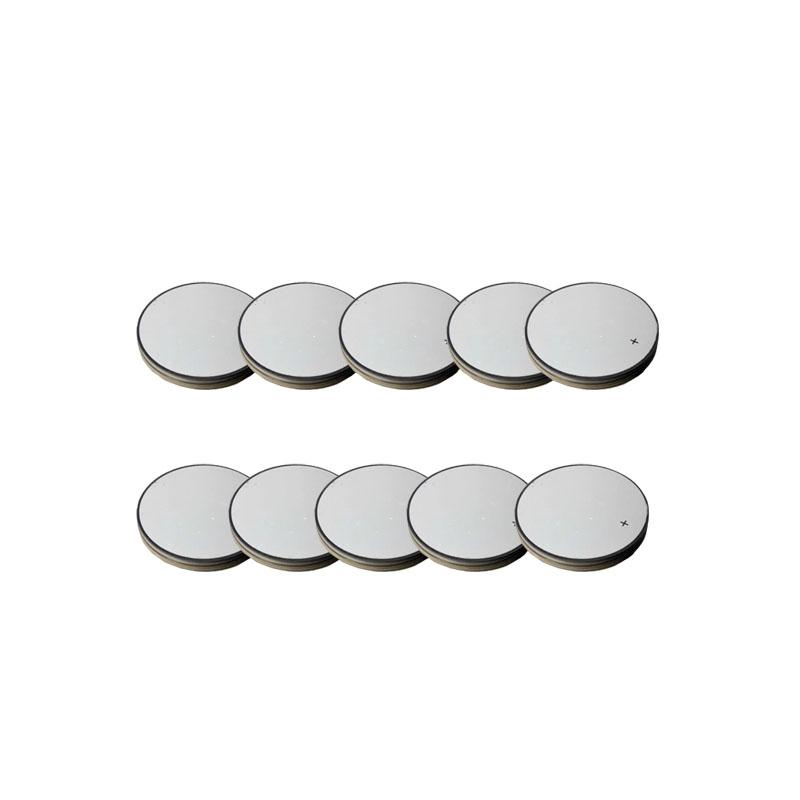

Piezoelectric ceramics: Piezoelectric ceramics are the core components of ultrasonic atomizers and have piezoelectric effect, that is, they can generate mechanical vibrations under the action of an external electric field. This vibration is the power source of the atomization process, and its frequency and amplitude directly affect the atomization effect.
Conductive film: Conductive film is a conductive film used to establish an electrical connection between FPC and piezoelectric ceramics. It must have good conductivity, adhesion and environmental resistance to ensure stable transmission of electrical signals.

2. The importance of precise alignment
During the assembly process, the alignment of FPC, piezoelectric ceramics and conductive film is crucial. Any slight deviation may lead to poor transmission of electrical signals, which in turn affects the performance of the atomizer. For example, if the alignment of FPC and piezoelectric ceramics is inaccurate, it may cause delay or loss of electrical signal transmission; if the conductive film is not placed correctly, it may cause poor electrical connection and even cause a short circuit.

3. Alignment and placement methods
In order to ensure the alignment and precise placement of FPC flexible circuit boards, piezoelectric ceramics and conductive films, the following measures can be taken:
Use precision positioning tools: During the assembly process, use precision positioning tools (such as positioning pins, positioning fixtures, etc.) to ensure the accurate alignment of each component. These tools can fix the position of the components to prevent them from moving during the assembly process.
Use visual assistance system: Use visual assistance systems such as microscopes or high-precision cameras to monitor the alignment of components in real time. This can not only improve the accuracy of assembly, but also detect and correct alignment deviations in a timely manner.
Optimize the assembly process: Develop a detailed assembly process and clarify the operating requirements and precautions for each step. Through process optimization, reduce alignment deviations caused by human factors and improve assembly efficiency and accuracy.
Train operators: Provide professional training for operators to familiarize them with the characteristics, assembly processes and operating requirements of components. Ensure the accuracy and stability of the assembly process by improving the skill level of operators.

4. Application and curing of conductive adhesive film
The application and curing of conductive adhesive film are also key links to ensure component alignment and precise placement.
Film selection: Select a suitable conductive adhesive film based on the working environment and performance requirements of the atomizer. Consider the conductivity, adhesion, temperature resistance, humidity resistance and other factors of the film to ensure that it can meet long-term use requirements.
Film cutting and placement: Use precision cutting tools to cut the conductive film into the required shape and size, and then accurately place it between the FPC and the piezoelectric ceramic. During the placement process, ensure that the film fits tightly to the surface of the component without bubbles or wrinkles.
Film curing: The conductive film needs to go through a curing process after placement to exert its conductive properties. According to the curing conditions of the film (such as temperature, time, etc.), a reasonable curing process is formulated. During the curing process, the temperature and time must be strictly controlled to ensure that the film can be fully cured and achieve optimal performance.
